Primitives
Primitives are the building blocks to create 1D, 2D, 3D shapes, so that one
can create simple object such as a Curve
, a Polygon
, a Box
, or a
Sphere
. More complex structures can be created by combining various

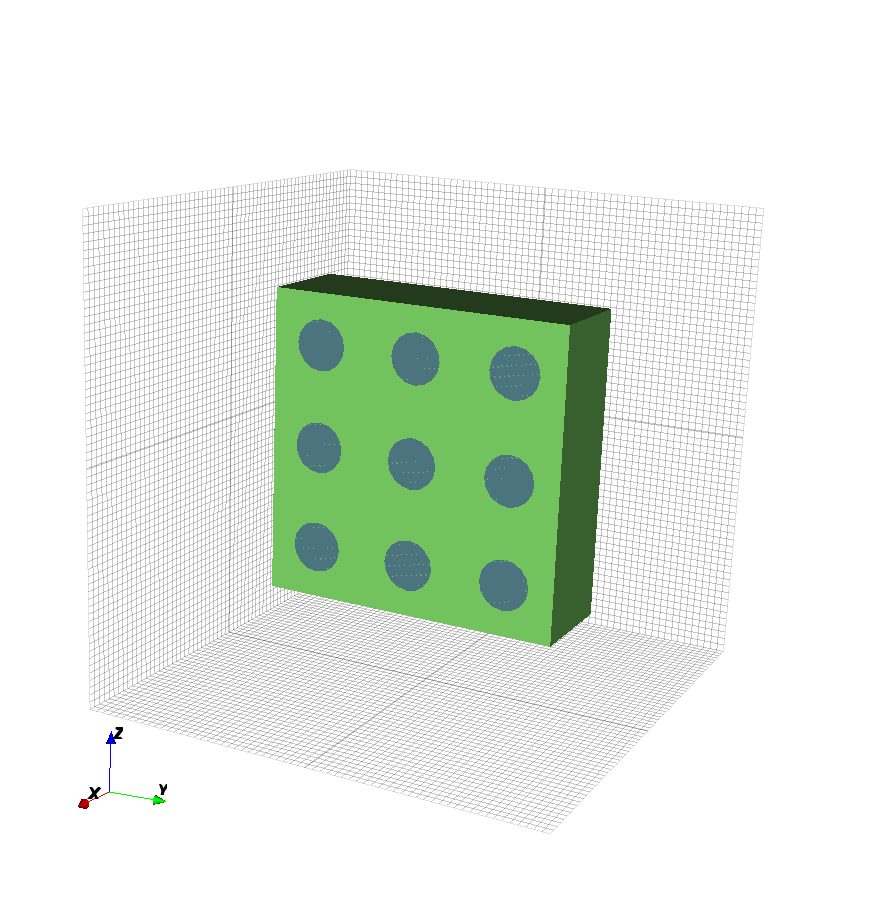

primitives. For example, a metal sheet with cylindrical holes can be achieved
by combining a metal box with several air cylinders.
Each shape created by a Primitive function is associated with a Property,
representing its material or computational properties independent of its geometry.
For example, by associating the same Box
primitive to different properties,
the same box can be a metal box, a plastic box, a glass box, or a virtual
box for injecting or logging the electromagnetic field.
Shapes
Box
The Box is the most simple primitive in CSXCAD. It is as well the most used primitive since it usually matches the given Cartesian or cylindrical FDTD mesh. Furthermore this primitive is the only one which shape depends on the chosen coordinate system it is defined with.
Matlab/Octave
AddBox()
function definition:
CSX = AddBox(CSX, 'propName', 1, start, stop, varargin);
CSX
: The original CSX structure.propName
: Name of the assigned property.prio
: Priority of the primitive, see Priority.start
:[x y z]
First (start) coordinate.stop
:[x y z]
Second (stop) coordinate.varargin
: A key/value list of primitives variable arguments.CoordSystem
: See Coordinate Systems.Transform, {array}
: See Transformation.
Python
AddBox()
method
definition:
box = material.AddBox(CSX, start, stop, **kw);
box
: An instance ofCSPrimBox
.material
: An instance ofCSPropMaterial
.start
:[x y z]
First (start) coordinate.stop
:[x y z]
Second (stop) coordinate.**kw
: Optional keyword arguments:priority
: priority of the primitive, see Priority.
Examples
Create a Cartesian box from
x=[-100 to +100]
,y=[-50 to 0]
andz=[-50 to 10]
:% Matlab/Octave CSX = AddMetal(CSX, 'metal'); % create PEC with propName 'metal' CSX = AddBox(CSX, 'metal', 1, [-100 -50 10], [100 0 -50]); # Python material = csx.AddMetal('metal') material.AddBox([-100, -50, 10], [100, 0, -50])

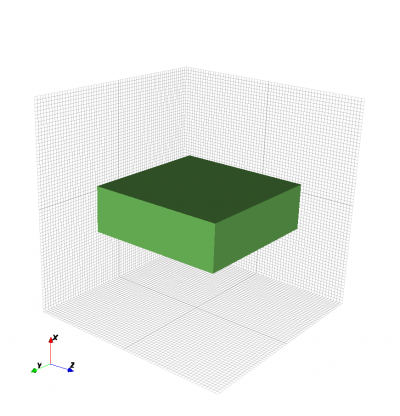

Certesian Box example.
In case of a cylindrical system, create a cylindrical box from
r=[50 to 70]
,alpha=[pi/2 to 3*pi/2]
andz=[-50 to 10]
:% Matlab/Octave CSX = AddMetal(CSX, 'metal'); % create PEC with propName 'metal' CSX = AddBox(CSX, 'metal', 1, [50 pi/2 10], [70 3*pi/2 -50]); # Python material = csx.AddMetal('metal') material.AddBox([50, pi / 2, 10], [70, 3 * pi/ 2, -50])
Note
Although
AddCylindricalShell()
may appear to be the appropriate function to define a cylinder when using a cylindrical coordinate system,AddBox()
is actually better suited because the structure will be meshed correctly. IfAddCylindricalShell()
is used, it is possible that the meshed cylinder will not be meshed correctly, as shown in the example below.In case of a Cartesian FDTD setup, define a cylindrically shaped box from
r=[50 to 70]
,alpha=[pi/2 to 3*pi/2]
andz=[-50 to 10]
:% Matlab/Octave CSX = AddMetal(CSX, 'metal'); % create PEC with propName 'metal' CSX = AddBox(CSX, 'metal', 1, [50 pi/2 10], [70 3*pi/2 -50], 'CoordSystem', 1); # Python material = csx.AddMetal('metal') box = material.AddBox([50, pi / 2, 10], [70, 3 * pi / 2, -50]) box.SetCoordinateSystem(1)

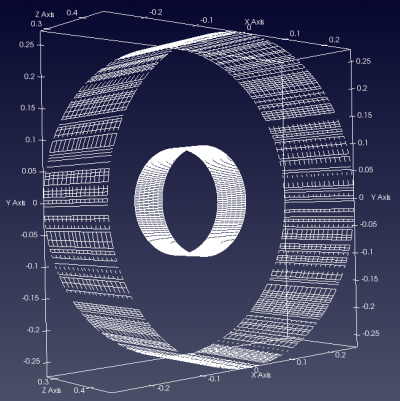

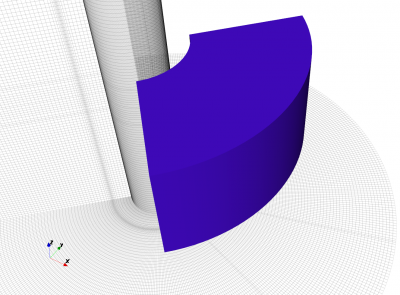

Left: Cylindrical Box example.
Right: Comparison of cylinders defined via
AddCylindricalShell()
(outer) andAddBox()
(inner)
Sphere
The sphere primitive is defined by its central point and radius.
Matlab/Octave
AddSphere()
function definition:
CSX = AddSphere(CSX, propName, prio, center, rad, varargin)
CSX
: The original CSX structure.propName
: Name of the assigned property.prio
: Priority of the primitive, see Priority.center
: Coordinate of the center point of the sphere.rad
: Radius of the sphere.varargin
: A key/value list of primitives variable arguments.CoordSystem
: See Coordinate Systems.Transform, {array}
: See Transformation.
Python
AddSphere()
method
definition:
sphere = material.AddSphere(center, radius, **kw)
box
: An instance ofCSPrimSphere
.material
: An instance ofCSPropMaterial
.center
: Coordinate of the center point of the sphere.rad
: Radius of the sphere.**kw
: Optional keyword arguments:priority
: priority of the primitive, see Priority.
Example
Create a sphere at
(0, 0, 0)
with radius200
:% Matlab/Octave CSX = AddMetal(CSX, 'metal'); % create PEC with propName 'metal' CSX = AddSphere(CSX, 'material', 1, [0 0 0], 200); # Python material = csx.AddMetal('metal') material.AddSphere([0, 0, 0], 200)

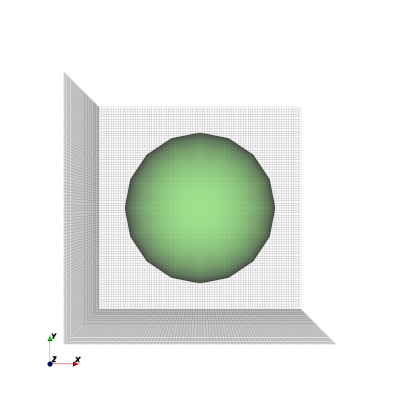

Sphere example.
Spherical Shell
The spherical shell primitive is defined by its central point, radius and shell thickness.
Matlab/Octave
AddSphericalShell()
function definition:
CSX = AddSphericalShell(CSX, propName, prio, center, rad, shell_width, varargin)
CSX
: The original CSX structure.propName
: Name of the assigned property.prio
: Priority of the primitive, see Priority.center
: Coordinate of the center point of the sphere.rad
: Radius of the spherical shell.shell_width
: Thickness of the shell.The inner radius of this shell is
rad - shell_width / 2
.The outer radius of this shell is
rad + shell_width / 2
.
varargin
: A key/value list of primitives variable argumentsCoordSystem
: See Coordinate Systems.Transform, {array}
: See Transformation.
Python
AddSphericalShell()
method
definition:
spherical_shell = material.AddSphericalShell(center, radius, shell_width, **kw)
spherical_shell
: An instance ofCSPrimSphericalShell
.material
: An instance ofCSPropMaterial
.center
: Coordinate of the center point of the sphere.rad
: Radius of the sphere.shell_width
: Thickness of the shell.The inner radius of this shell is
rad - shell_width / 2
.The outer radius of this shell is
rad + shell_width / 2
.
**kw
: Optional keyword arguments:priority
: priority of the primitive, see Priority.
Example
Create a hollow metal sphere at
(0, 0, 0)
with radius50
and thickness10
:% Matlab/Octave CSX = AddMetal(CSX, 'metal'); % create PEC with propName 'metal' CSX = AddSphericalShell(CSX, 'metal', 10, [0 0 0], 50, 10); # Python material = csx.AddMetal('metal') material.AddSphericalShell([0, 0, 0], 50, 10)
Spherical shell example.
Cylinder
A cylindrical primitive is defined by its midpoints of the first and last faces, and the radius of the cylinder. The axis of the cylinder will be along the start - stop points with the two cylinder faces being perpendicular to this axis.
Matlab/Octave
AddCylinder()
function definition:
CSX = AddCylinder(CSX, propName, prio, start, stop, rad, varargin)
CSX
: The original CSX structurepropName
: Name of the assigned materialprio
: Priority of the primitive, see Priority.start
:[x y z]
start point of the cylinder (midpoint of the first cylinder face).stop
:[x y z]
stop point of the cylinder (midpoint of the second cylinder face).rad
: Radius of the cylinder.varargin
: A key/value list of primitives variable arguments.CoordSystem
: See Coordinate Systems.Transform, {array}
: See Transformation.
Python
AddCylinder()
method
definition:
cylinder = material.AddCylinder(start, stop, radius, **kw)
cylinder
: An instance ofCSPrimCylinder
.material
: An instance ofCSPropMaterial
.start
:[x y z]
start point of the cylinder (midpoint of the first cylinder face).stop
:[x y z]
stop point of the cylinder (midpoint of the second cylinder face).radius
: Radius of the cylinder.**kw
: Optional keyword arguments:priority
: priority of the primitive, see Priority.
Example
Create a metal cylinder from
(0, 0, -300)
to(0, 200, 300)
with radius300
:% Matlab/Octave CSX = AddMetal(CSX, 'metal'); % create PEC with propName 'metal' CSX = AddCylinder(CSX, 'metal', 1, [0 0 -300], [0 200 300], 300); # Python material = csx.AddMetal('metal') material.AddCylinder([0, 0, -300], [0, 200, 300], 300)

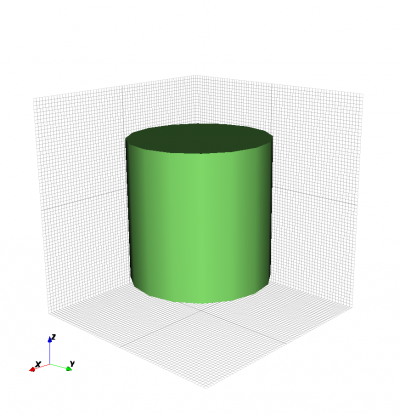

Cylinder example.
Cylindrical Shell
A cylindrical shell primitive is defined by its midpoints of the first and last faces, the radius of the cylinder, and shell thickness.
Matlab/Octave
AddCylindricalShell()
function definition:
CSX = AddCylindricalShell(CSX, propName, prio, start, stop, rad, shell_width, varargin)
CSX
: default first argument, containing the CSXCAD data structure.propName
: name of the (previously defined) property (e.g. a metal or material).start
,stop
:[x y z]
coordinates of the start and end points of the cylinder central axis.rad
: radius of the cylinder.shell_width
: width of the cylinder shell.The inner radius of this shell is
rad - shell_width / 2
.The outer radius of this shell is
rad + shell_width / 2
.
varargin
: a key/value list of primitives variable arguments.CoordSystem
: See Coordinate Systems.Transform, {array}
: See Transformation.
Python
AddCylindricalShell()
method
definition:
cylinder_shell = material.AddCylindericalShell(start, stop, radius, shell_width, **kw)
cylinder_shell
: An instance ofCSPrimCylindericalShell
.material
: An instance ofCSPropMaterial
.start
:[x y z]
start point of the cylinder (midpoint of the first cylinder face).stop
:[x y z]
stop point of the cylinder (midpoint of the second cylinder face).radius
: Radius of the cylinder.shell_width
: width of the cylinder shell.The inner radius of this shell is
rad - shell_width / 2
.The outer radius of this shell is
rad + shell_width / 2
.
**kw
: Optional keyword arguments:priority
: priority of the primitive, see Priority.
Example
Create a cylindrical shell with radius 30 drawing unit and shell thickness of 5 drawing unit, made of plexiglass:
% Matlab/Octave CSX = AddMaterial(CSX, 'plexiglass'); CSX = SetMaterialProperty(CSX, 'plexiglass', 'Epsilon', 2.22); start = [0 0 -40]; stop = [0 0 40]; CSX = AddCylindricalShell(CSX, 'plexiglass', 5, start, stop, 30, 5); # Python plexiglass = csx.AddMaterial('plexiglass', epsilon=2.22) start = [0, 0, -40] stop = [0, 0, 40] plexiglass.AddCylindricalShell(start, stop, 30, 5)

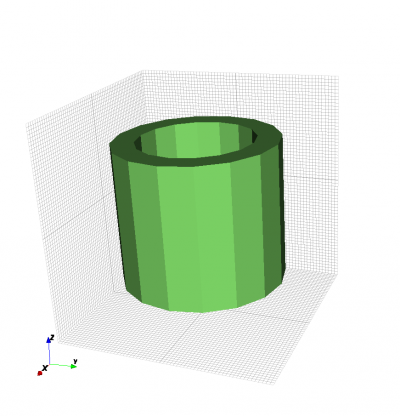

Cylindrical shell example.
Curve
A 1D curve is defined by its coordinate arrays.
Matlab/Octave
AddCurve()
function definition:
CSX = AddCurve(CSX, propName, prio, points, varargin)
CSX
: The original CSX structure.propName
: Name of the assigned property.prio
: Priority of the primitive, see Priority.points
: Two-dimensional coordinates of the base polygon.Array column refers to point number, array row refers to its
x
,y
,z
positions.points(1, point_number)
: positionx
ofpoint_number
.points(2, point_number)
: positiony
ofpoint_number
.points(3, point_number)
: positionz
ofpoint_number
.
varargin
: A key/value list of primitives variable arguments.CoordSystem
: See Coordinate Systems.Transform, {array}
: See Transformation.
Python
AddCurve()
method
definition:
curve = material.AddCurve(points, **kw)
curve
: An instance ofCSPrimCurve
.material
: An instance ofCSPropMaterial
.points
: Two-dimensional coordinates of the base polygon.Array column refers to point number, array row refers to its
x
,y
,z
positions.points[0, point_number]
: positionx
ofpoint_number
.points[1, point_number]
: positiony
ofpoint_number
.points[2, point_number]
: positionz
ofpoint_number
.
**kw
: Optional keyword arguments:priority
: priority of the primitive, see Priority.
Example
This example creates a Biquad antenna from thin metal on y=0, with length of each side= \(\sqrt{50}\):
% Matlab/Octave points(1, 1) = 0; points(2, 1) = 0; points(3, 1) = 0; points(1, 2) = 5; points(2, 2) = 0; points(3, 2) = 5; points(1, 3) = 10; points(2, 3) = 0; points(3, 3) = 0.5; points(1, 4) = 15; points(2, 4) = 0; points(3, 4) = 5; points(1, 5) = 20; points(2, 5) = 0; points(3, 5) = 0; points(1, 6) = 15; points(2, 6) = 0; points(3, 6) = -5; points(1, 7) = 10; points(2, 7) = 0; points(3, 7) = -0.1; points(1, 8) = 5; points(2, 8) = 0; points(3, 8) = -5; points(1, 9) = 0; points(2, 9) = 0; points(3, 9) = 0; CSX = AddMetal(CSX, 'metal'); CSX = AddCurve(CSX, 'metal', 10, points); # Python points = [[0] * 9] * 3 points[0, 0] = 0; points[1, 0] = 0; points[2, 0] = 0; points[0, 1] = 5; points[1, 1] = 0; points[2, 1] = 5; points[0, 2] = 10; points[1, 2] = 0; points[2, 2] = 0.5; points[0, 3] = 15; points[1, 3] = 0; points[2, 3] = 5; points[0, 4] = 20; points[1, 4] = 0; points[2, 4] = 0; points[0, 5] = 15; points[1, 5] = 0; points[2, 5] = -5; points[0, 6] = 10; points[1, 6] = 0; points[2, 6] = -0.1; points[0, 7] = 5; points[1, 7] = 0; points[2, 7] = -5; points[0, 8] = 0; points[1, 8] = 0; points[2, 8] = 0; metal = csx.AddMetal('metal') metal.AddCurve(points)

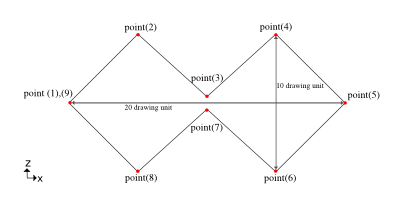

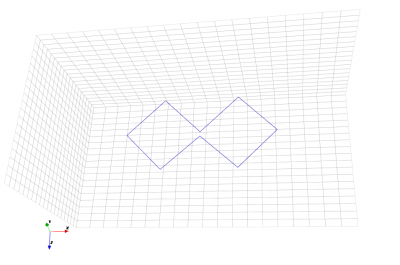

Left: Biquad with points annotated.
Right: Biquad model.
Wire
Define a cylinder-like wire by its coordinate arrays and radius.
Matlab/Octave
AddWire()
function definition:
CSX = AddWire(CSX, propName, prio, points, wire_rad, varargin)
CSX
: The original CSX structurepropName
: Name of the assigned property.prio
: Priority of the primitive, see Priority.points
: Two-dimensional coordinates of the base polygon.Array column refers to point number, array row refers to its
x
,y
,z
positions.points(1, point_number)
: positionx
ofpoint_number
.points(2, point_number)
: positiony
ofpoint_number
.points(3, point_number)
: positionz
ofpoint_number
.
wire_rad
: Wire radius.varargin
: A key/value list of primitives variable arguments.CoordSystem
: See Coordinate Systems.Transform, {array}
: See Transformation.
Python
AddWire()
method
definition:
wire = material.AddWire(points, radius, **kw)
wire
: An instance ofCSPrimWire
.material
: An instance ofCSPropMaterial
.points
: Two-dimensional coordinates of the base polygon.Array column refers to point number, array row refers to its
x
,y
,z
positions.points(1, point_number)
: positionx
ofpoint_number
.points(2, point_number)
: positiony
ofpoint_number
.points(3, point_number)
: positionz
ofpoint_number
.
radius
: Wire radius.**kw
: Optional keyword arguments:priority
: priority of the primitive, see Priority.
Example
1. This example creates a Biquad antenna from wire of radius 0.1 on xz-plane, with length of each side=:math:sqrt{50}:
% Matlab/Octave
points(1, 1) = 0; points(2, 1) = 0; points(3, 1) = 0;
points(1, 2) = 5; points(2, 2) = 0; points(3, 2) = 5;
points(1, 3) = 10; points(2, 3) = 0; points(3, 3) = 0.5;
points(1, 4) = 15; points(2, 4) = 0; points(3, 4) = 5;
points(1, 5) = 20; points(2, 5) = 0; points(3, 5) = 0;
points(1, 6) = 15; points(2, 6) = 0; points(3, 6) = -5;
points(1, 7) = 10; points(2, 7) = 0; points(3, 7) = -0.1;
points(1, 8) = 5; points(2, 8) = 0; points(3, 8) = -5;
points(1, 9) = 0; points(2, 9) = 0; points(3, 9) = 0;
CSX = AddMetal(CSX, 'metal');
CSX = AddWire(CSX, 'metal', 10, points, 0.1);
# Python
points = [[0] * 9] * 3
points[0, 0] = 0; points[1, 0] = 0; points[2, 0] = 0;
points[0, 1] = 5; points[1, 1] = 0; points[2, 1] = 5;
points[0, 2] = 10; points[1, 2] = 0; points[2, 2] = 0.5;
points[0, 3] = 15; points[1, 3] = 0; points[2, 3] = 5;
points[0, 4] = 20; points[1, 4] = 0; points[2, 4] = 0;
points[0, 5] = 15; points[1, 5] = 0; points[2, 5] = -5;
points[0, 6] = 10; points[1, 6] = 0; points[2, 6] = -0.1;
points[0, 7] = 5; points[1, 7] = 0; points[2, 7] = -5;
points[0, 8] = 0; points[1, 8] = 0; points[2, 8] = 0;
metal = csx.AddMetal('metal')
metal.AddWire(points, 0.1)
Polygon
A polygon is defined by its two dimensional shape in form of a polygon, its normal direction and elevation.
Note
The polygon has to be defined using Cartesian coordinates. For use with cylindrical mesh, set
CoordSystem
to0
to force Cartesian coordinates.Each column
j
represents a vertex in the points matrix. The number of columns equals the number of points.Each row represents projection of the point on the axis in the order of right hand rule. For example: if object is normal to
y
axis (normDir = 1
), the first and second row containz
andx
coordinates respectively. The number of rows is two.
Matlab/Octave
AddPolygon()
function definition:
CSX = AddPolygon(CSX, propName, prio, normDir, elevation, points, varargin)
CSX
: The original CSX structure.propName
: Name of the assigned property.prio
: Priority of the primitive, see Priority.normDir
: The normal direction of the polygon (0->x, 1->y, 2->z).points
: Two-dimensional coordinates p(i,j) of the base polygon.elevation
: Elevation in normal direction.varargin
: A key/value list of primitives variable arguments.CoordSystem
: See Coordinate Systems.Transform, {array}
: See Transformation.
Python
AddPolygon()
method
definition:
polygon = material.AddPolygon(points, norm_dir, elevation, **kw)
polygon
: An instance ofCSPrimPolygon
.material
: An instance ofCSPropMaterial
.points
: Two-dimensional coordinates p(i,j) of the base polygon.normDir
: The normal direction of the polygon (0->x, 1->y, 2->z).elevation
: Elevation in normal direction.**kw
: Optional keyword arguments:priority
: priority of the primitive, see Priority.
Example
A star shaped polygon located in normal direction at z = 0:
% Matlab/Octave p(1, 1) = -100; p(2, 1) = -100; p(1, 2) = 0; p(2, 2) = -50; p(1, 3) = 100; p(2, 3) = -100; p(1, 4) = 50; p(2, 4) = 0; p(1, 5) = 100; p(2, 5) = 100; p(1, 6) = 0; p(2, 6) = 50; p(1, 7) = -100; p(2, 7) = 100; p(1, 8) = -50; p(2, 8) = 0; % >> p % p = % % -100 0 100 50 100 0 -100 -50 % -100 -50 -100 0 100 50 100 0 CSX = AddPolygon(CSX, 'metal', 1, 2, 0, p, 'CoordSystem', 0) % Python p = [[0] * 9] * 2 p[0, 0] = -100; p[1, 0] = -100; p[0, 1] = 0; p[1, 1] = -50; p[0, 2] = 100; p[1, 2] = -100; p[0, 3] = 50; p[1, 3] = 0; p[0, 4] = 100; p[1, 4] = 100; p[0, 5] = 0; p[1, 5] = 50; p[0, 6] = -100; p[1, 6] = 100; p[0, 7] = -50; p[1, 7] = 0; metal = csx.AddMetal('metal') polygon = metal.AddPolygon(p, 2, 0) polygon.SetCoordinateSystem(0)

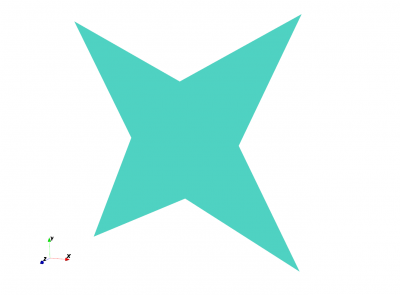

Polygon example.
Extruded Polygon
An extruded polygon is defined by its two dimensional base shape in form of a polygon, its normal direction, elevation and thickness.
Note
The polygon has to be defined using Cartesian coordinates. For use
with cylindrical mesh, set CoordSystem
to 0.
Matlab/Octave
AddLinPoly()
function definition:
CSX = AddLinPoly(CSX, propName, prio, normDir, elevation, points, Length, varargin)
CSX
: The original CSX structure.propName
: Name of the assigned property.prio
: Priority of the primitive, see Priority.normDir
: The normal direction of the polygon (0->x, 1->y, 2->z).points
: Two-dimensional coordinates of the base polygon; see above.elevation
: Elevation in normal direction.length
: Linear extrusion in normal direction, starting at elevation.varargin
: See primitives variable arguments.CoordSystem
: See Coordinate Systems.Transform, {array}
: See Transformation.
Python
AddLinPoly()
method
definition:
linpoly = material.AddLinPoly(points, norm_dir, elevation, length, **kw)
linpoly
: An instance ofCSPrimLinPoly
.material
: An instance ofCSPropMaterial
.points
: Two-dimensional coordinates of the base polygon; see above.norm_dir
: The normal direction of the polygon (0->x, 1->y, 2->z).elevation
: Elevation in normal direction.length
: Linear extrusion in normal direction, starting at elevation.**kw
: Optional keyword arguments:priority
: priority of the primitive, see Priority.
Example
A star shaped polygon extruded in
z
direction:% Matlab/Octave p(1, 1) = -100; p(2, 1) = -100; p(1, 2) = 0; p(2, 2) = -50; p(1, 3) = 100; p(2, 3) = -100; p(1, 4) = 50; p(2, 4) = 0; p(1, 5) = 100; p(2, 5) = 100; p(1, 6) = 0; p(2, 6) = 50; p(1, 7) = -100; p(2, 7) = 100; p(1, 8) = -50; p(2, 8) = 0; CSX = AddLinPoly(CSX, 'metal', 1, 2, 2, p, 100, 'CoordSystem', 0) # Python p = [[0] * 8] * 2 p[0, 0] = -100; p[1, 0] = -100; p[0, 1] = 0; p[1, 1] = -50; p[0, 2] = 100; p[1, 2] = -100; p[0, 3] = 50; p[1, 3] = 0; p[0, 4] = 100; p[1, 4] = 100; p[0, 5] = 0; p[1, 5] = 50; p[0, 6] = -100; p[1, 6] = 100; p[0, 7] = -50; p[1, 7] = 0; metal = csx.AddMetal('metal') linpoly = metal.AddLinPoly(2, 2, 100, p) linpoly.SetCoordinateSystem(0)
LinPoly example.
Rotational Polygon
An rotational polygon is defined by its two dimensional base shape in form of a polygon, its normal direction, rotational axis and angle of rotation.
Matlab/Octave
AddRotPoly()
function definition:
CSX = AddRotPoly(CSX, materialname, prio, normDir, points, RotAxisDir, angle, varargin)
CSX
: The original CSX structure.materialname
: Name of the assigned material property, created by :func:AddMetal` or :func:``AddMaterial
.prio
: Priority of the primitive, see Priority.normDir
: The normal direction of the polygon e.g.x
,y
orz
, or numeric (0->x, 1->y, 2->z).RotAxisDir
: Rotational axis direction e.g.x
,y
orz
, or numeric (0->x, 1->y, 2->z). * Note` it should be different to normal direction.points
: Two-dimensional coordinates of the base polygon; see aboveangle
: Rotation angle, optional, default is[0 2*pi]
(e.g.[0 2*pi]
for a full rotation).varargin
: See primitives variable arguments.CoordSystem
: See Coordinate Systems.Transform, {array}
: See Transformation.
Note: The polygon has to be defined using Cartesian coordinates. For use
with cylindrical mesh, set CoordSystem
to 0.
Python
AddRotPoly()
method
definition:
rotpoly = AddRotPoly(points, norm_dir, elevation, rot_axis, angle, **kw)
rotpoly
: An instance ofCSPrimRotPoly
.material
: An instance ofCSPropMaterial
.points
: Two-dimensional coordinates of the base polygon; see abovenorm_dir
: The normal direction of the polygon e.g.x
,y
orz
, or numeric (0->x, 1->y, 2->z).elevation
: Elevation in normal direction.rot_axis
: Rotational axis direction e.g.x
,y
orz
, or numeric (0->x, 1->y, 2->z). * Note` it should be different to normal direction.angle
: Rotation angle, optional, default is[0 2*pi]
(e.g.[0 2*pi]
for a full rotation).**kw
: Optional keyword arguments:priority
: priority of the primitive, see Priority.
Example
Left: Rotational Polygon example. Right: Cone example. |

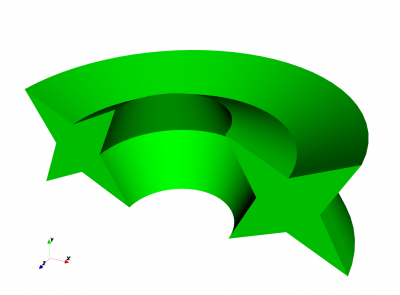

The same star shaped polygon, shifted in x-direction and rotated around the x-axis:
% Matlab/Octave p(1, 1) = -100; p(2, 1) = -100; p(1, 2) = 0; p(2, 2) = -50; p(1, 3) = 100; p(2, 3) = -100; p(1, 4) = 50; p(2, 4) = 0; p(1, 5) = 100; p(2, 5) = 100; p(1, 6) = 0; p(2, 6) = 50; p(1, 7) = -100; p(2, 7) = 100; p(1, 8) = -50; p(2, 8) = 0; p(1,:) = p(1,:) + 200; % shift in x-direction by 200 CSX = AddRotPoly(CSX, 'metal', 1, 2, p, 1, [0 pi], 'CoordSystem', 0) # Python p = [[0] * 8] * 2 p[0, 0] = -100; p[1, 0] = -100; p[0, 1] = 0; p[1, 1] = -50; p[0, 2] = 100; p[1, 2] = -100; p[0, 3] = 50; p[1, 3] = 0; p[0, 4] = 100; p[1, 4] = 100; p[0, 5] = 0; p[1, 5] = 50; p[0, 6] = -100; p[1, 6] = 100; p[0, 7] = -50; p[1, 7] = 0; # shift in x-direction by 200 for idx, val in enumerate(p[0]): p[0, idx] = val + 200 metal = csx.AddMetal('metal') rotpoly = metal.AddRotPoly(p, 1, 0, 2, 1, [0, pi]) rotpoly.SetCoordinateSystem(0)

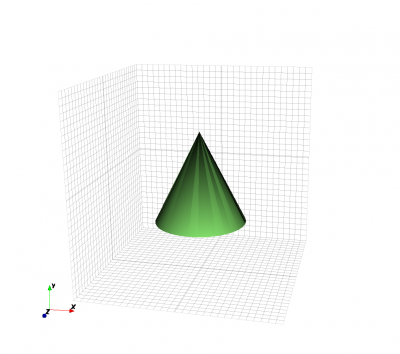

A conical solid can be created by rotating a triangular polygon:
% Matlab/Octave p(1, 1) = 0; p(2, 1) = -100; p(1, 2) = 100; p(2, 2) = -100; p(1, 3) = 0; p(2, 3) = 100; CSX = AddRotPoly(CSX, 'metal', 1, 2, p, [1 0 0], [0, 2*pi]) # Python p = [[0] * 3] * 2 p[0, 0] = 0; p[1, 0] = -100; p[0, 1] = 100; p[1, 1] = -100; p[0, 2] = 0; p[1, 2] = 100; metal = csx.AddMetal('metal') rotpoly = metal.AddRotPoly(p, 1, 0, 2, [1, 0, 0], [0, 2 * pi])
Polyhedron
A polyhedron is the most general 3D primitive available for openEMS. It can be used to create a body with (nearly) any shape by defining a closed surface using verteces and faces.
Verteces and Faces
Left: Tetrahedron, the simplest polyhedron. Right: The right hand rule. When using the right hand the thumb indicates the normal direction of the face and the fingers show the direction how to order the vertices for each face. |
A polyhedron is the most general shape that can be defined in openEMS.
Polyhedrons are defined by their vertices and faces. In openEMS each
vertex is an array containing the x, y and z coordinates of the point.
All faces must contain the vertices in a right-handed order with the
normal direction for each face pointing out of the solid. In the example
of the tetrahedron the four faces would be {1, 2, 3}
, {2, 4, 3}
and {1, 3, 4}
.
Note
The polyhedron must be a closed surface for 3D discretisation
All faces must contain the vertices in a right-handed order with the normal direction for each face pointing out of the solid
Matlab/Octave
AddPolyhedron()
function definition:
CSX = AddPolyhedron(CSX, propName, prio, vertices, faces, varargin)
CSX
: The original CSX structure.propName
: Name of the assigned property.prio
: Priority of the primitive, see Priority.vertices
: Cell array of all vertices.faces
: Cell array of all faces.varargin
: A key/value list of primitives variable arguments.CoordSystem
: See Coordinate Systems.Transform, {array}
: See Transformation.
Python
AddPolyhedron()
method
definition:
polyhedron = AddPolyhedron(**kw)
box
: An instance ofCSPrimPolyhedron
.material
: An instance ofCSPropMaterial
.**kw
: Optional keyword arguments:priority
: priority of the primitive, see Priority.
The created CSPrimPolyhedron
instance
has the following methods:
AddFace(verts)
: Add a face with a given list of vertices. The vertices have to be added already. Currently only triangle faces are possible.AddVertex(x, y, z)
: Add a single 3D vertex.
Example
% Matlab/Octave
% example tetrahedron
vertices{1} = [0 0 0];
vertices{2} = [1 0 0];
vertices{3} = [0 1 0];
vertices{4} = [0 0 1];
faces{1} = [0 2 1];
faces{2} = [0 1 3];
faces{3} = [0 3 2];
faces{4} = [1 2 3];
CSX = AddMetal(CSX, 'metal');
CSX = AddPolyhedron(CSX, 'metal', 0, vertices, faces);
# Python
metal = csx.AddMetal('metal')
polyhedron = metal.AddPolyhedron()
polyhedron.AddVertex(0, 0, 0)
polyhedron.AddVertex(1, 0, 0)
polyhedron.AddVertex(0, 1, 0)
polyhedron.AddVertex(0, 0, 1)
faces = []
polyhedron.AddFace([0, 2, 1])
polyhedron.AddFace([0, 2, 1])
polyhedron.AddFace([0, 1, 3])
polyhedron.AddFace([0, 3, 2])
polyhedron.AddFace([1, 2, 3])
Coordinate Systems
The coordinates used to define a primitive are always assumed to be given in the coordinate system used globally (i.e. by the mesh’s coordinate system). In certain situations, it may be useful though to define a primitive in a coordinate system specifically for this single primitive.
In Matlab/Octave, the keyword for that is CoordSystem
:
0
for Cartesian and 1
for a cylindrical coordinate system.
In Python, use CSPrimitives
’s
SetCoordinateSystem()
method.
Example
Define a box forcing a cylindrical coordinate representation:
% Matlab/Octave
CSX = AddBox(CSX, 'metal', 1, [50 pi/2 10], [70 3*pi/2 -50], 'CoordSystem', 1);
# Python
material = csx.AddMetal('metal')
box = material.AddBox([50, pi / 2, 10], [70, 3 * pi / 2, -50])
box.SetCoordinateSystem(1)
Transformation
All primitives can be translated, scaled and rotated with the Transform
option. This option is added to the command which creates a primitive
(AddBox
, AddSphere
, etc.).
For example, in Matlab/Octave:
'Transform', {'Scale', '1, 1, 2', 'Rotate_X', pi / 4, 'Translate', '0, 0, 100'}
The transformations are applied in the order as given inside the {} brackets.
That means,
{'Scale', '1, 1, 2', 'Rotate_X', pi / 4}
and {'Rotate_X', 'Scale', '1, 1, 2'}
will lead to different results.
Matlab/Octave
{'Scale', 's'}
:Scale the primitive in x, y and z-direction equally by the factors
s
.
{'Scale', 's_x, s_y, s_z'}
:Scale the primitive in x, y and z-direction by the factors
s_x, s_y, s_z
.
{'Rotate_Origin', [ax, ay, az, angle]}
:Rotate the primitive by the given angle (in radians) around the given axis
[0, 0, 0] --> [ax, ay, az]
.
{'Rotate_X', angle}
:Rotate the primitive by the given angle (in radians). Rotations around the y and z axis are done accordingly with ‘Rotate_Y’ and ‘Rotate_Z’
{'Translate', 't_x, t_y, t_z'}
:Translate the structure by the vector
(t_x, t_y, t_z)
{'Matrix', [4x4 matrix]}
:General affine transformation given as a 4 by 4 matrix. A 1 is appended internally to the row vector of the primtive nodes, so it becomes a four-dimensional row vector. A 0 is appended to edge vectors (directions). This row vector multiplied by the transform matrix gives the new coodinates. The first three rows/columns of the matrix are rotation/shear/scaling. The last column is
[0; 0; 0; 1]
. The last row is[shift_x, shift_y, shift_z, 1]
.
These transformations can be used to create for example an ellipsoid primitive.
Python
In Python, all shape primitives are subclasses of the class
CSPrimitives
with support
of AddTransform()
:
primitive.AddTransform(transform, *args, **kw)
primitive
: An instance ofCSPrimitives
.transform
: A transformation keyword.*args, **kw
: Argument of the transformation.
The transformation keyword is specified by the variable keyword
.
All transformations applied to an object is interally tracked by the
class CSTransform
. As a result, a
transformation can be applied using both the keyword style, or
the instance method style:
# transform primitive via CSTransform object
tr = primitive.GetTransform()
tr.Translate(vec, concatenate=True)
# transform primitive via AddTransform
primitive.AddTransform("Translate", vec, concatenate=True)
Multiple transformations are added on top of each other by default,
unless the parameter concatenate
is False
.
There’s a one-to-one match between transformation methods and keywords, with identical names and parameters.
RotateAxis(ny, angle, deg=True, concatenate=True)
Add a rotation transformation around a cartesian axis (x,y or z), in degrees (
deg=True
) or radians (deg=False
).
RotateOrigin(vec, angle, deg=True, concatenate=True)
Add a rotation transformation around an arbitrary axis
vec
by the given angle, in degrees (deg=True
) or radians (deg=False
).
Translate(vec, concatenate=True)
Translate the structure by the vector
[t_x, t_y, t_z]
Scale(scale, concatenate=True)
Scale the primitive in x, y and z-direction by a scalar factor
s
, or by a vector the factors[s_x, s_y, s_z]
.
SetMatrix(mat, concatenate=True)
(known as Matrix when used as a keyword): An affine transformation matrix as (4, 4) array.General affine transformation given as a 4 by 4 matrix. A 1 is appended internally to the row vector of the primtive nodes, so it becomes a four-dimensional row vector. A 0 is appended to edge vectors (directions). This row vector multiplied by the transform matrix gives the new coodinates. The first three rows/columns of the matrix are rotation/shear/scaling. The last column is
[0; 0; 0; 1]
. The last row is[shift_x, shift_y, shift_z, 1]
.
Example
Add a translation and 30° rotation around the z-axis:
% Octave # Python primitive.AddTransform('Translate', [10, 4, 6]) primitive.AddTransform('RotateAxis', 'z', 30)
Add a rotation around the
axis=[1, 1, 0]
bypi / 3
(30°):% Octave # Python primitive.AddTransform('RotateOrigin', [1, 1, 0], np.pi/3, deg=False)
Warning
matlab documentation TBD.
Priority

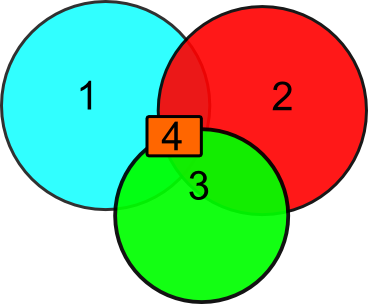

An important concept in openEMS are the priorities assigned to each primitive. In regions where two or more primitives overlap, openEMS needs to decide which material property to assign to these regions. Here the priorities of the overlapping primitives become important: At each point openEMS will assign the material of the primitive with the highest priority. This way one can for example carve holes in a block of solid material by adding air primitives which have a higher priority. The diagrams below show how priorities will effect the material distribution for the simulations. If two blocks are overlapping, the one with the higher priority value will be chosen.

At points where two or more primitives overlap, the properties of the primitive with the highest priority value will be assigned.
For the more complicated case, where three or more blocks overlap, openEMS uses the block with the highest priority at each point. This way it is possible to create complicated shapes from the basic primitives by simply using primitives assigned to different materials and assign the priorities appropriately.
Exceptions:
Non-physical properties, such as dump boxes, probe boxes, etc. are not affected by the priority system.
Excitations (AddExcitation) are not affected as well, since multiple (super positioned) excitations are possible.
The curve primitive as a 1D line element is not affected
Lumped elements are not affected
Example: Metal Sheet With Cylindrical Holes

A holey metal sheet is easily created by combining a metal box and several air cylinders. Here it is important that the priority of the air cylinders is higher than the priority of the metal box. Only 3 steps are necessary to achieve this structure:
Define the materials for metal and air.
Add a metal box with AddBox(), set the priority to 1 (lowest priority).
Add air cylinders with coordinates that they are completely going through the metal sheet, set the priority to 2 (higher than 1).
The Matlab/Octave code for a metal sheet with 3x3 holes will be:
% Define a material with propName 'air'. Actually a vacuum, but the
% material property differences between air and vacuum is minimum.
CSX = AddMaterial(CSX, 'Air');
CSX = SetMaterialProperty(CSX, 'Air', 'Epsilon', 1, 'Mue', 1);
% create PEC with propName 'metal'
CSX = AddMetal(CSX, 'metal');
% define structure
CSX = AddBox(CSX, 'metal', 1, [-100 -300 -300], [100 300 300]);
for y=-1:1
for z=-1:1
CSX = AddCylinder(CSX, 'Air', 2, [-100 y*200 z*200], [100 y*200 z*200], 50);
end
end
Complex Examples
More complex structures can be created by combining various primitives with specific priorities and transformations.

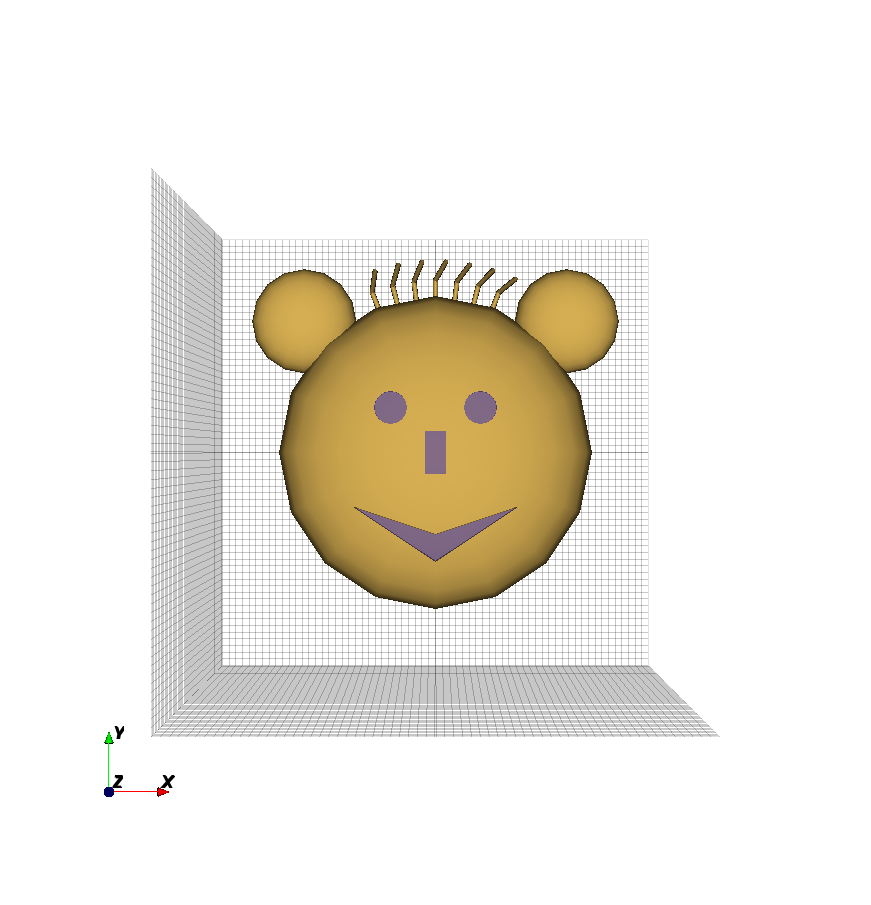

Mickey

This structure was created by combining several scaled spheres, cylinders, and a polyhedron:
% materials
CSX = AddMaterial( CSX, 'Air' );
CSX = SetMaterialProperty( CSX, 'Air', 'Epsilon', 1, 'Mue', 1 );
CSX = AddMetal(CSX,'metal'); %create PEC with propName 'metal'
% face
CSX = AddSphere(CSX,'metal',1,[0 0 0],150, 'Transform',{'Scale', '2,2,1'});
% ears
CSX = AddSphere(CSX,'metal',1,[sqrt(0.7*150^2) sqrt(0.7*150^2) 0],50, 'Transform',{'Scale', '2,2,1'});
CSX = AddSphere(CSX,'metal',1,[-sqrt(0.7*150^2) sqrt(0.7*150^2) 0],50, 'Transform',{'Scale', '2,2,1'});
%nose
CSX = AddBox(CSX,'Air',2,[-20 -40 -160],[20 40 160]);
% eyes
CSX = AddCylinder(CSX, 'Air',2,[-sqrt(0.3*150^2) sqrt(0.3*150^2) -150],[-sqrt(0.3*150^2) sqrt(0.3*150^2) 150],30);
CSX = AddCylinder(CSX, 'Air',2,[sqrt(0.3*150^2) sqrt(0.3*150^2) -150],[sqrt(0.3*150^2) sqrt(0.3*150^2) 150],30);
% hair
points=zeros(3,3);
points(:,1) = [0 290 0];
points(:,2) = [0 330 0];
points(:,3) = [20 360 50];
for i=-3:3
CSX = AddWire(CSX,'metal',10, points, 5,'Transform',{'Rotate_Z',i*pi/25});
end
% mouth
vertices{1} = [-150 -100 150];
vertices{2} = [0 -150 150];
vertices{3} = [150 -100 150];
vertices{4} = [0 -200 150];
vertices{5} = [-150 -100 -150];
vertices{6} = [0 -150 -150];
vertices{7} = [150 -100 -150];
vertices{8} = [0 -200 -150];
faces{1}=[1 2 3 0];
faces{2}=[4 7 3 0];
faces{3}=[4 5 1 0];
faces{4}=[6 7 3 2];
faces{5}=[1 5 6 2];
faces{6}=[7 6 5 4];
CSX = AddPolyhedron(CSX, 'Air', 0, vertices, faces);

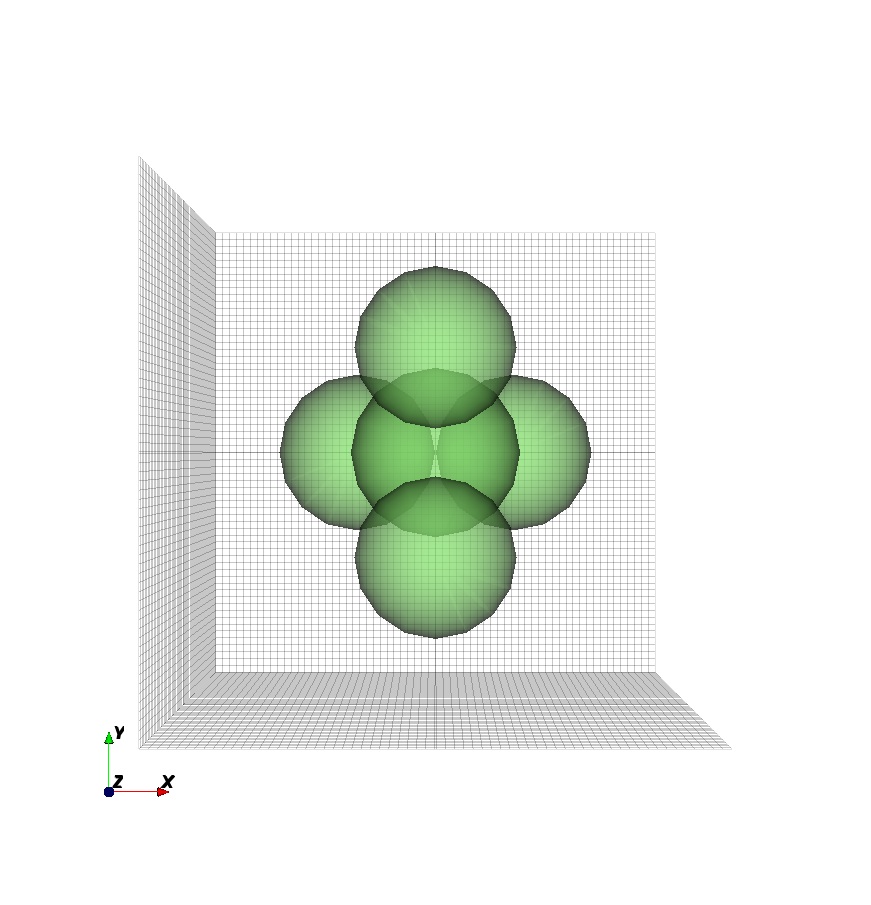

Sphere Aggregation

An aggregation of multiple spheres can easily be achieved. In this case
there are 5 close packed spheres around the (0 0 0)
point:
CSX = AddMaterial( CSX, 'Diel' );
CSX = SetMaterialProperty( CSX, 'Diel', 'Epsilon', 5, 'Mue', 1 );
rad=150;
x=rad*tan(pi/6);
y=rad/cos(pi/6);
z=sqrt(x^2+y^2);
coords=[[-rad 0 -(x+y)/2]; [rad 0 -(x+y)/2]; [0 0 (x+y)/2]; [0 z 0]; [0 -z 0]];
for i=1:length(coords(:,1)),
CSX = AddSphere(CSX,'Diel',1,coords(i,:),rad);
end
